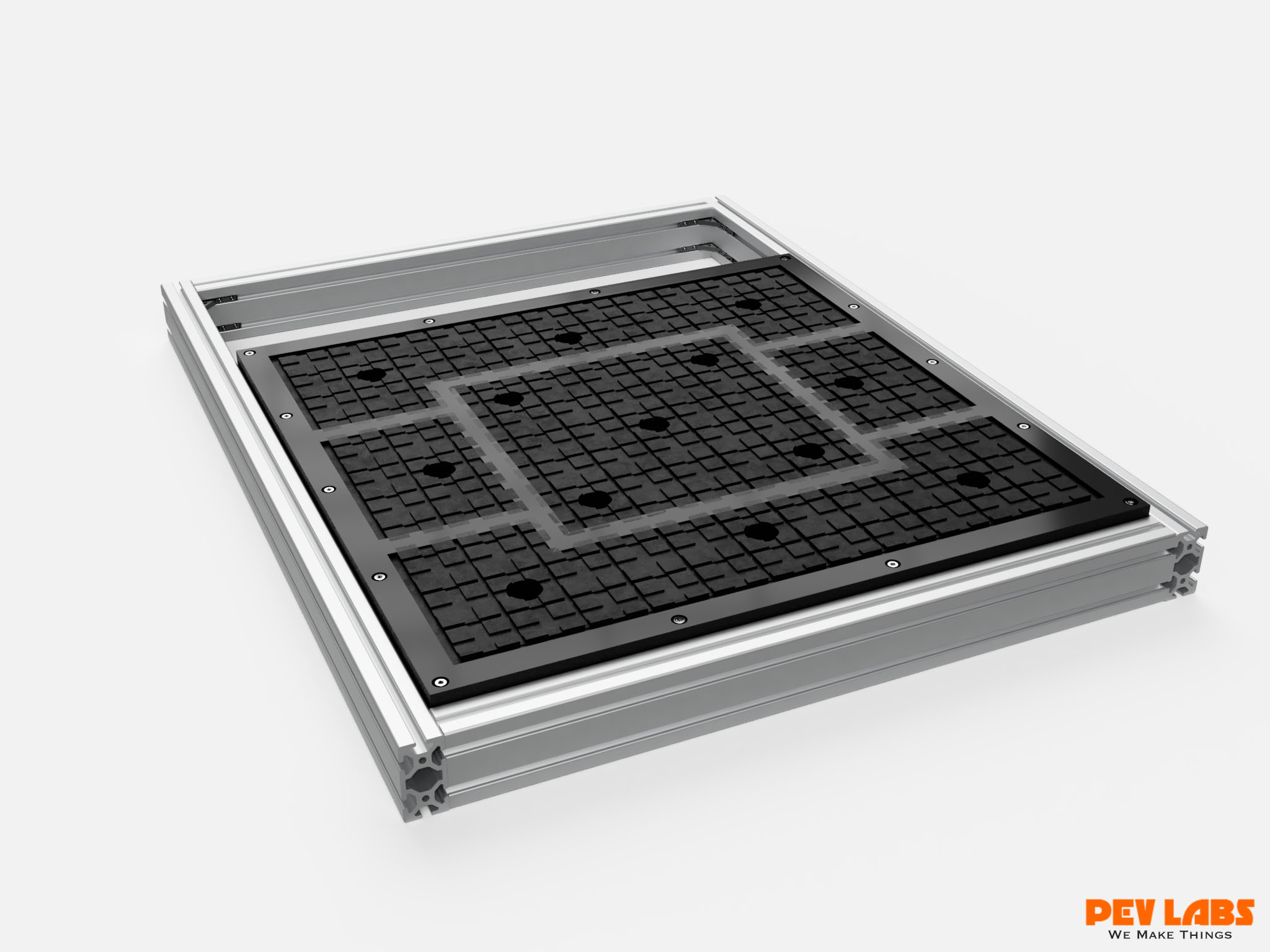

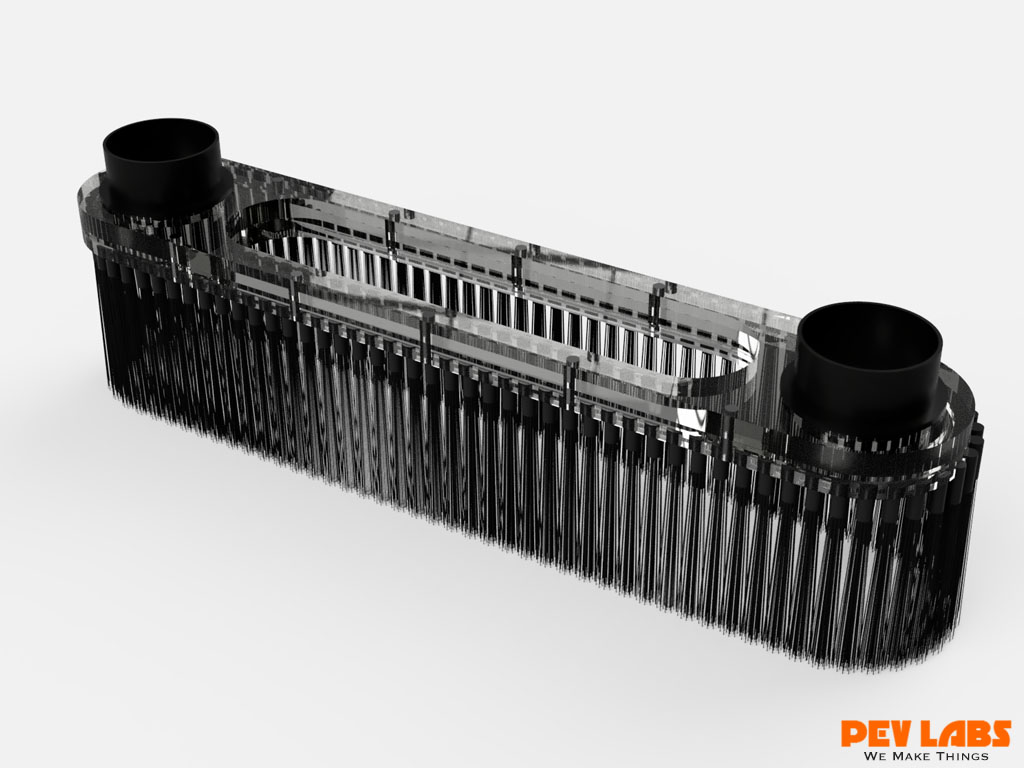

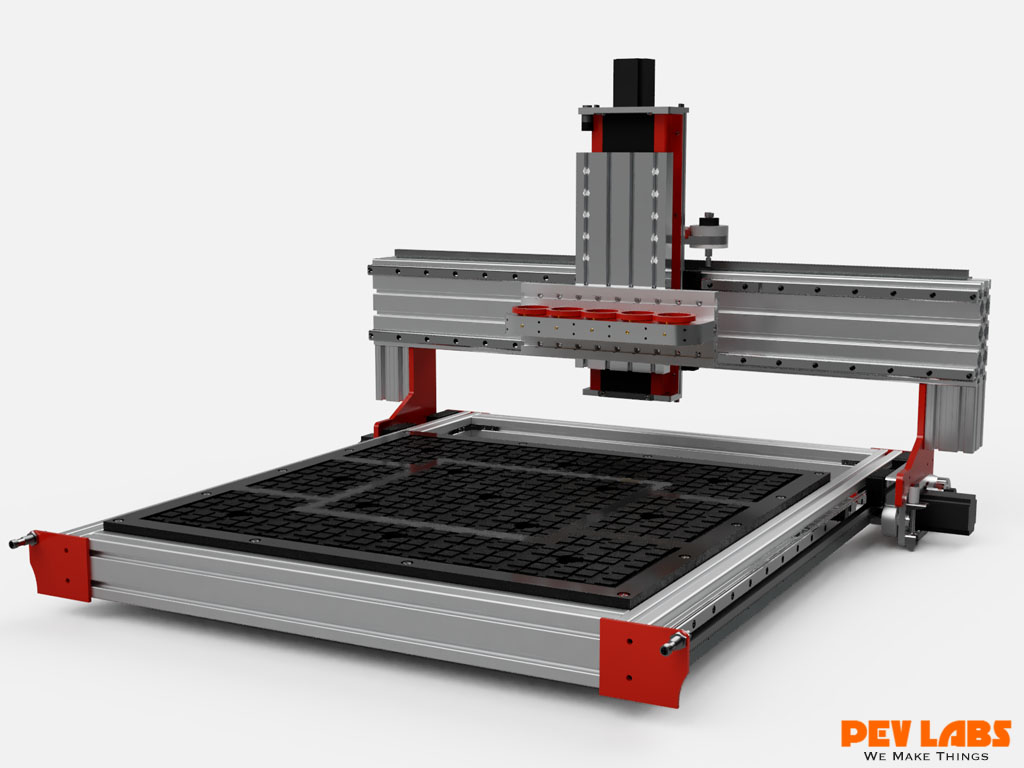

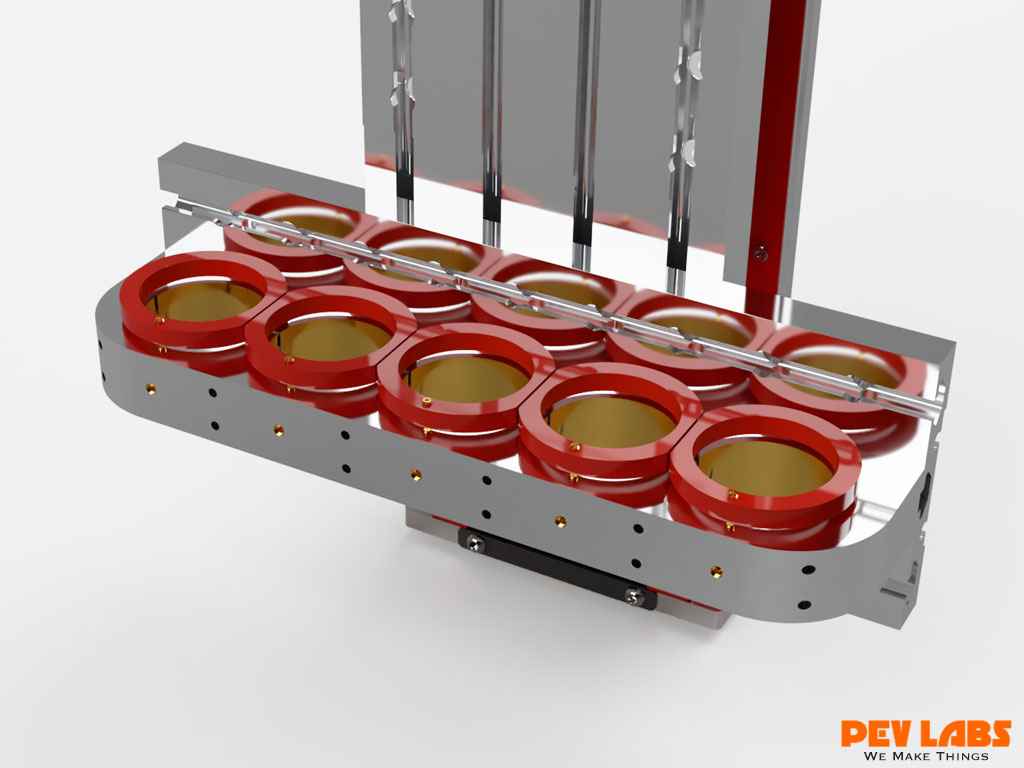

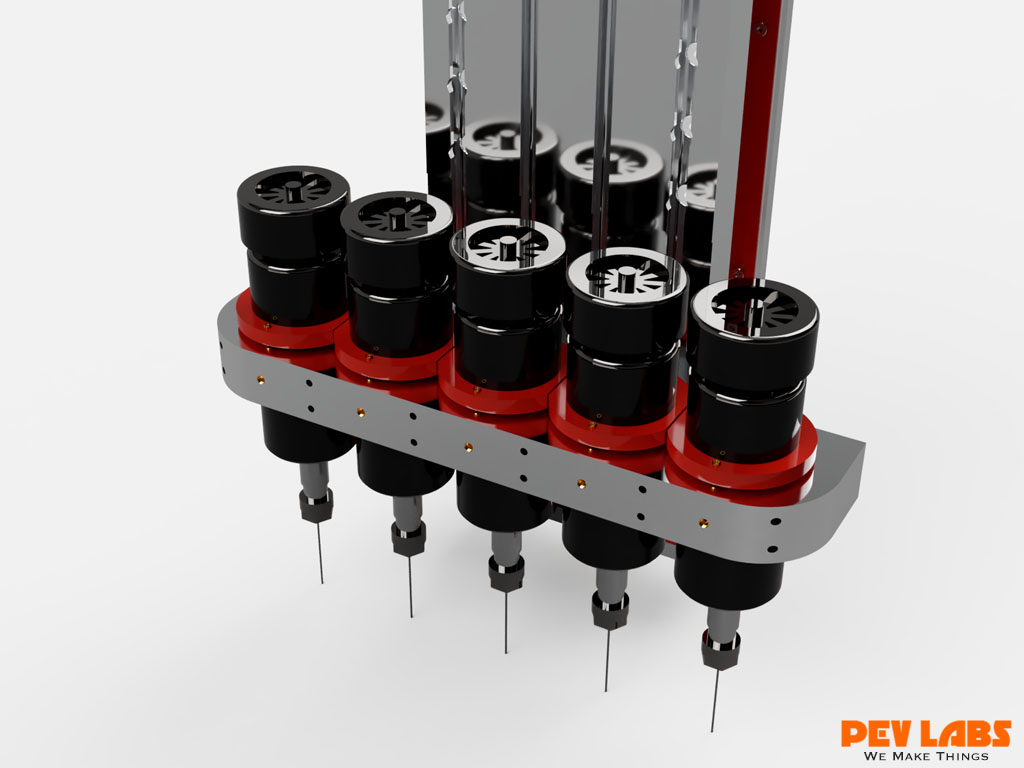

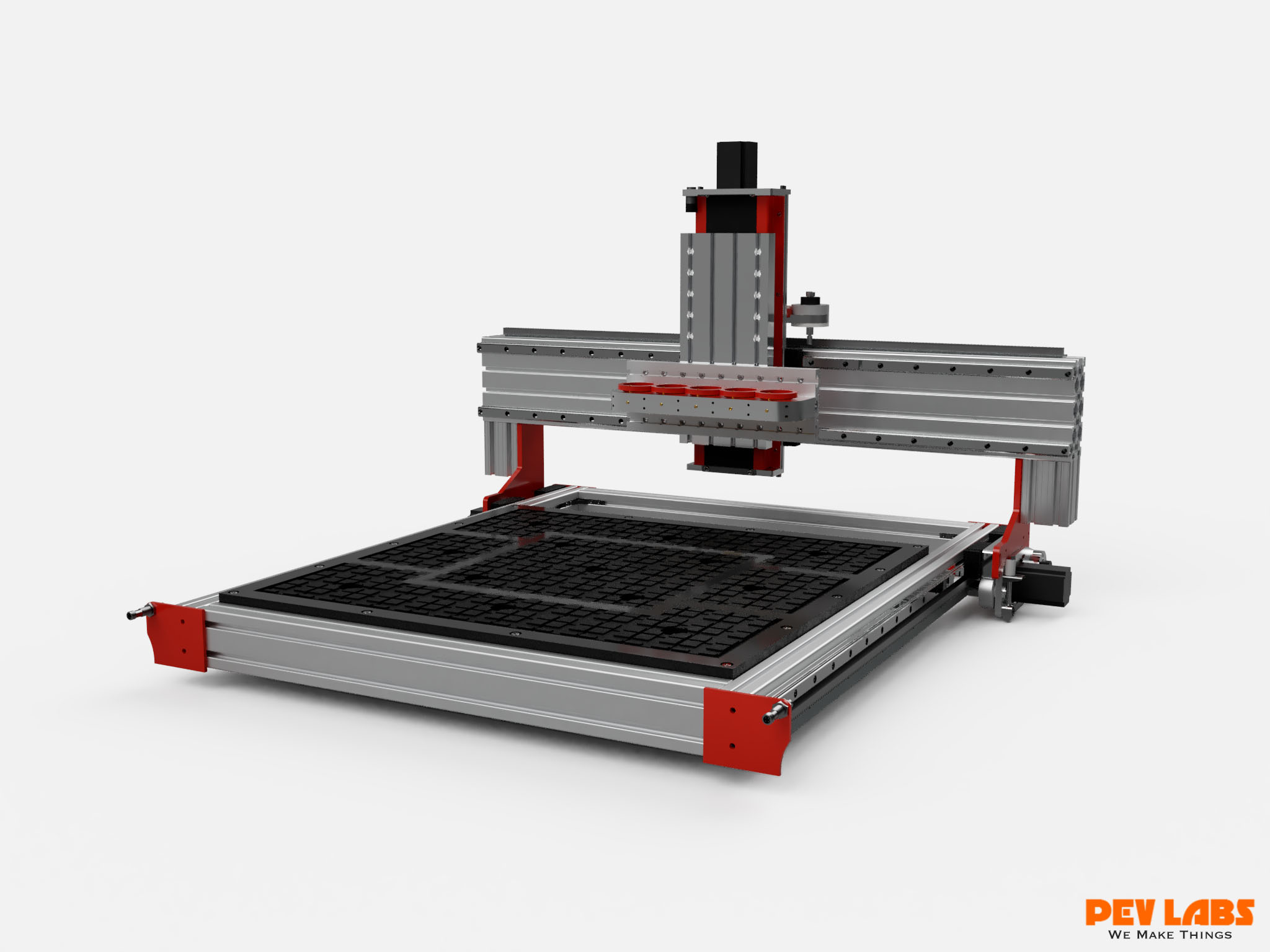

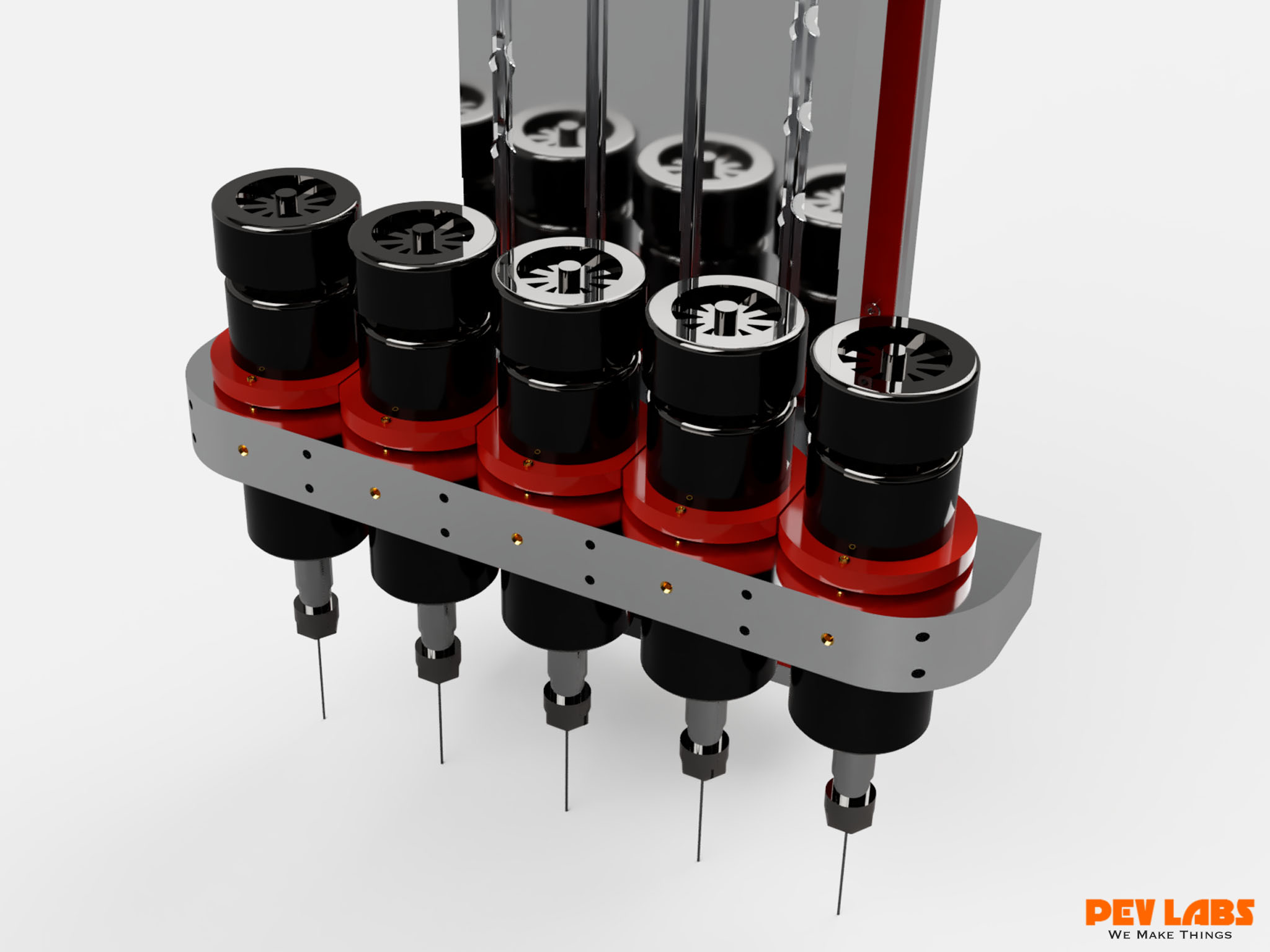

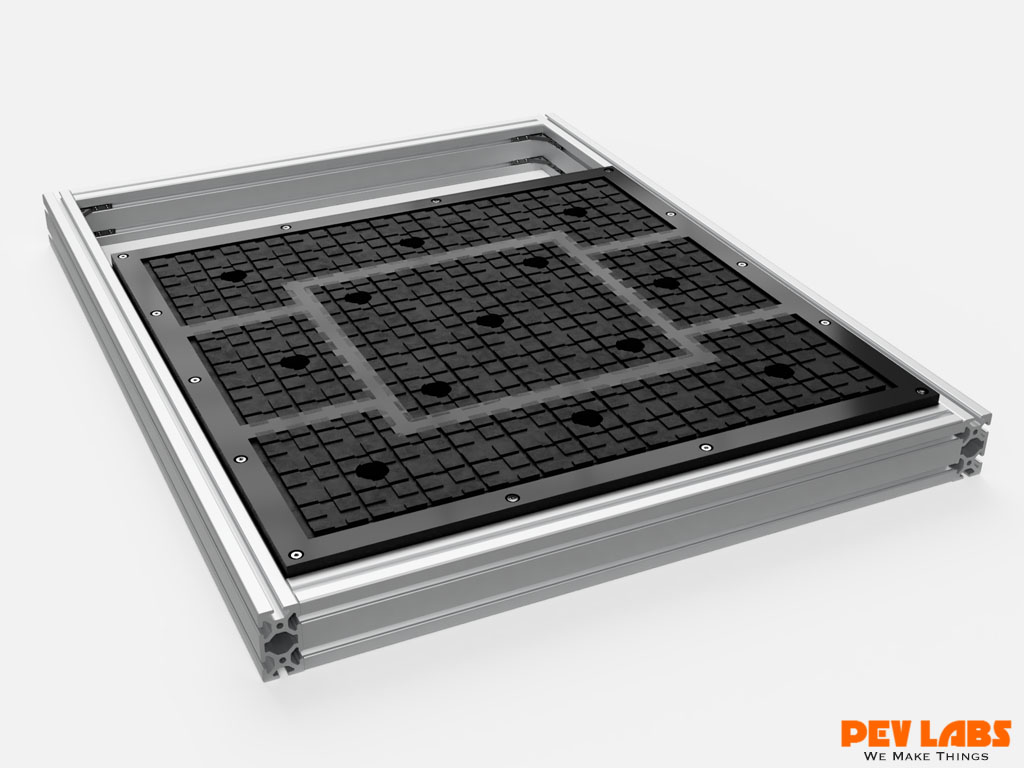

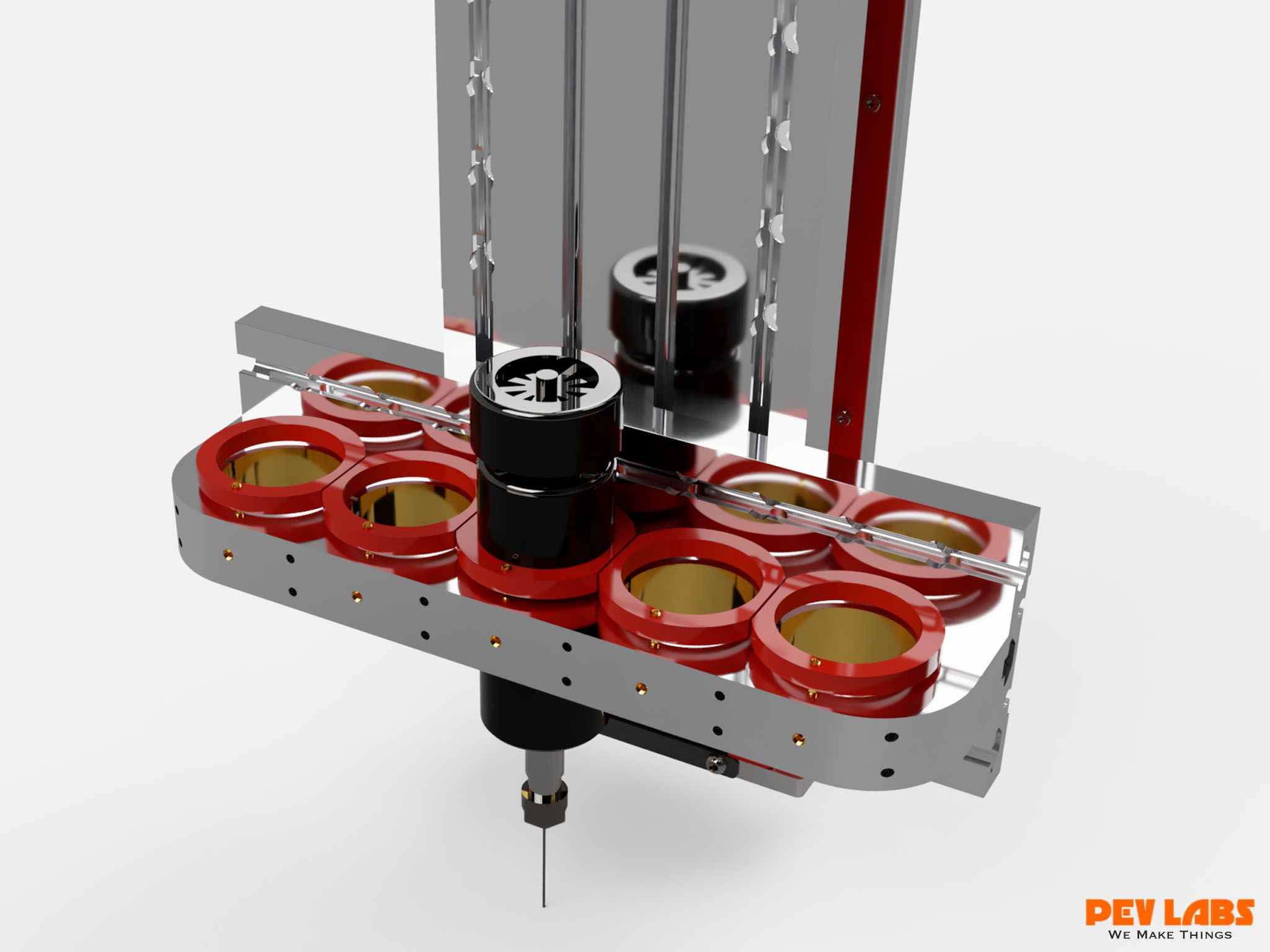

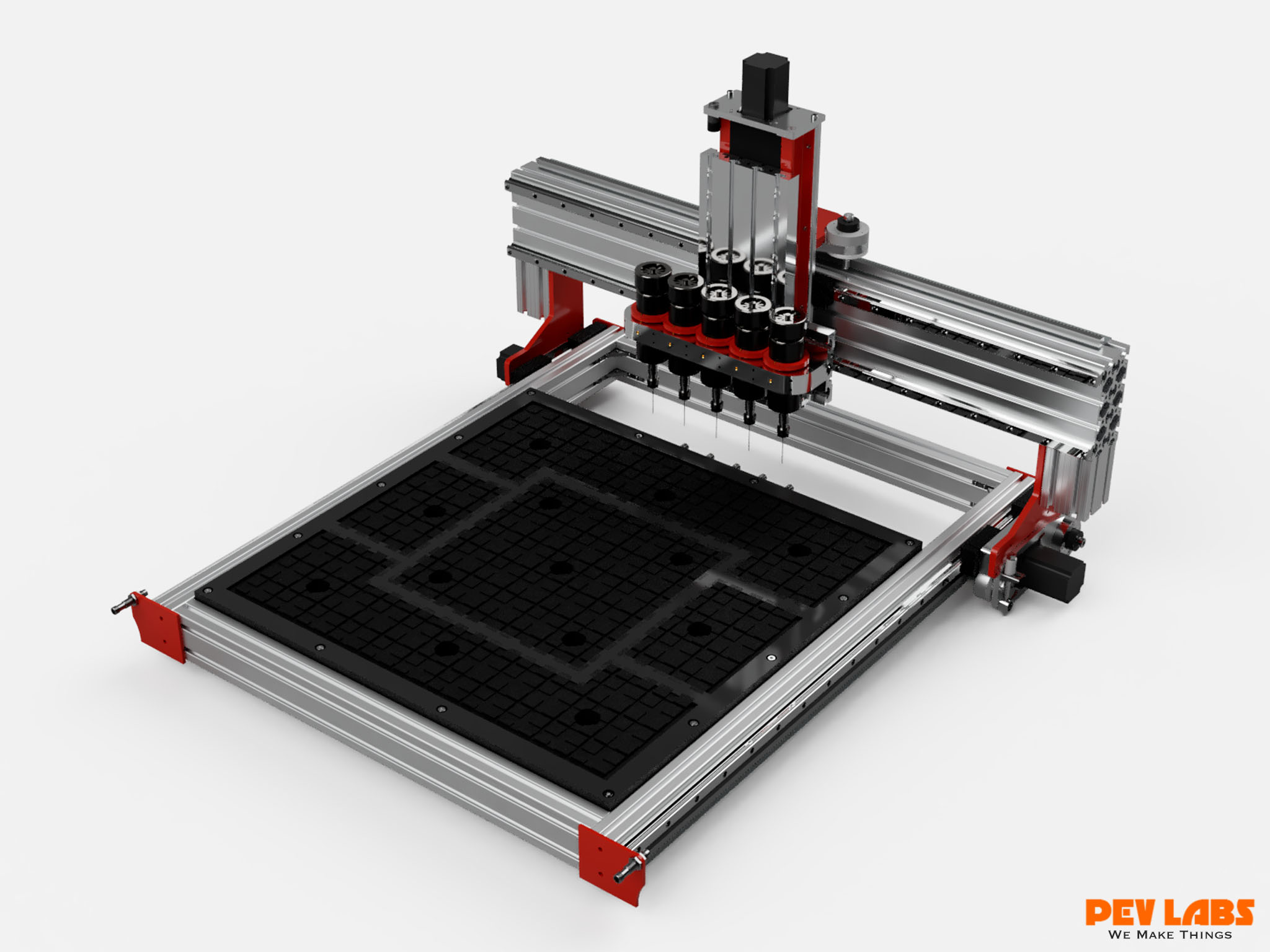

Custom designed multi-spindle CNC Machine with vacuum table. This particular model is a small format and deploys up to five small spindles. The intent of this machine is to produce five sets of fairly tiny parts simultaneously. The custom milled spindle mount has micro Z-depth adjuster rings along with front set screws to lock the spindle heights once adjusted. A custom multi-spindle dust boot to accommodate the many spindles. One could optionally use three spindles in stead of five. Pictured are 52mm air cooled hobby spindles. ER11 collets accept 1/8 end mills. Units run from 3,000 up to 12,000rpm on 24-100 volts DC. Spindle run out 0.01-0.03. We use our DIY large format CNC machine daily as it is the core of our CNC milling service offerings. CNC machining for your personal or business manufacturing needs. Visit our 90 watt DIY CO2 laser cutter engraver project build currently in progress.

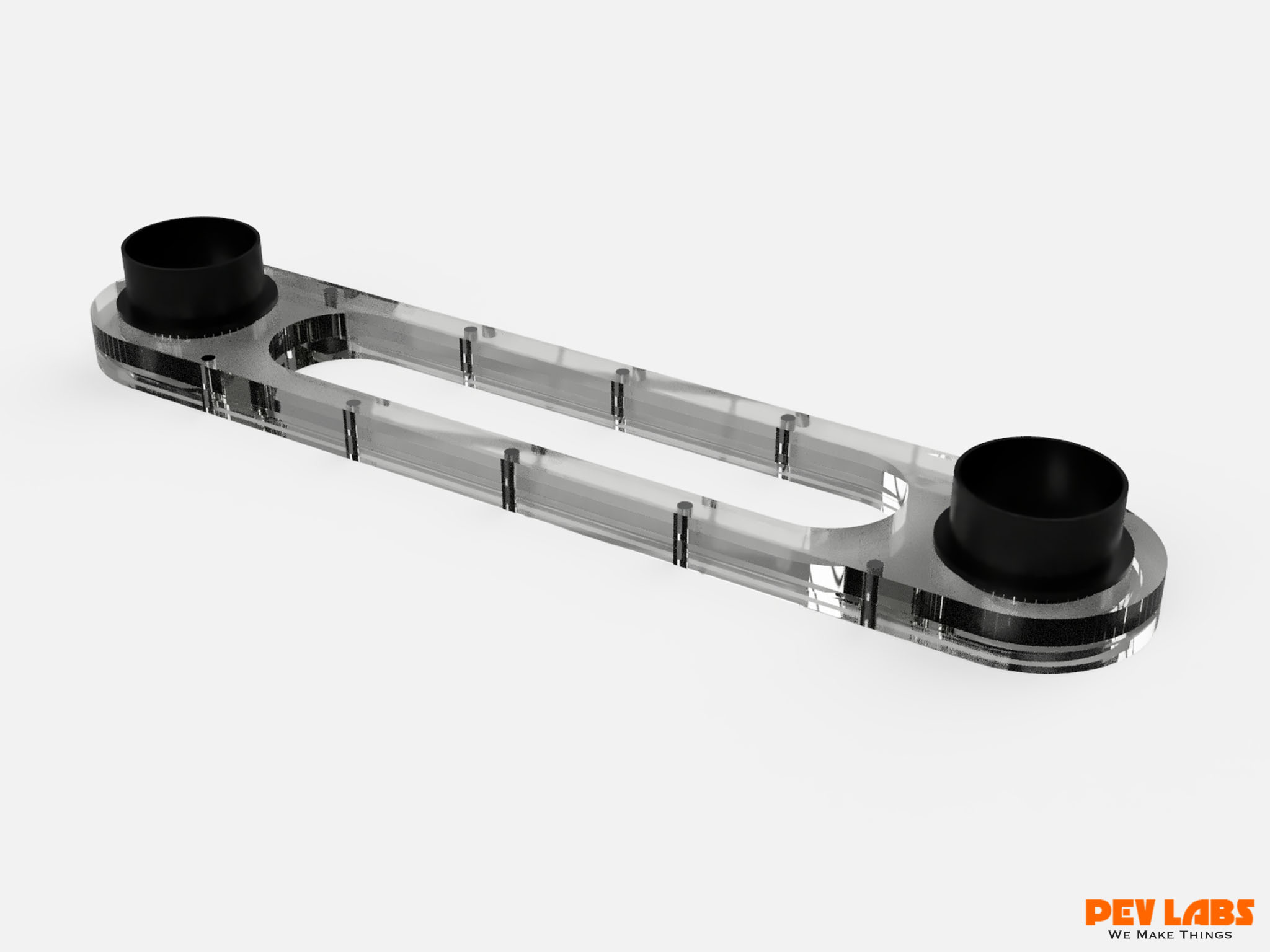

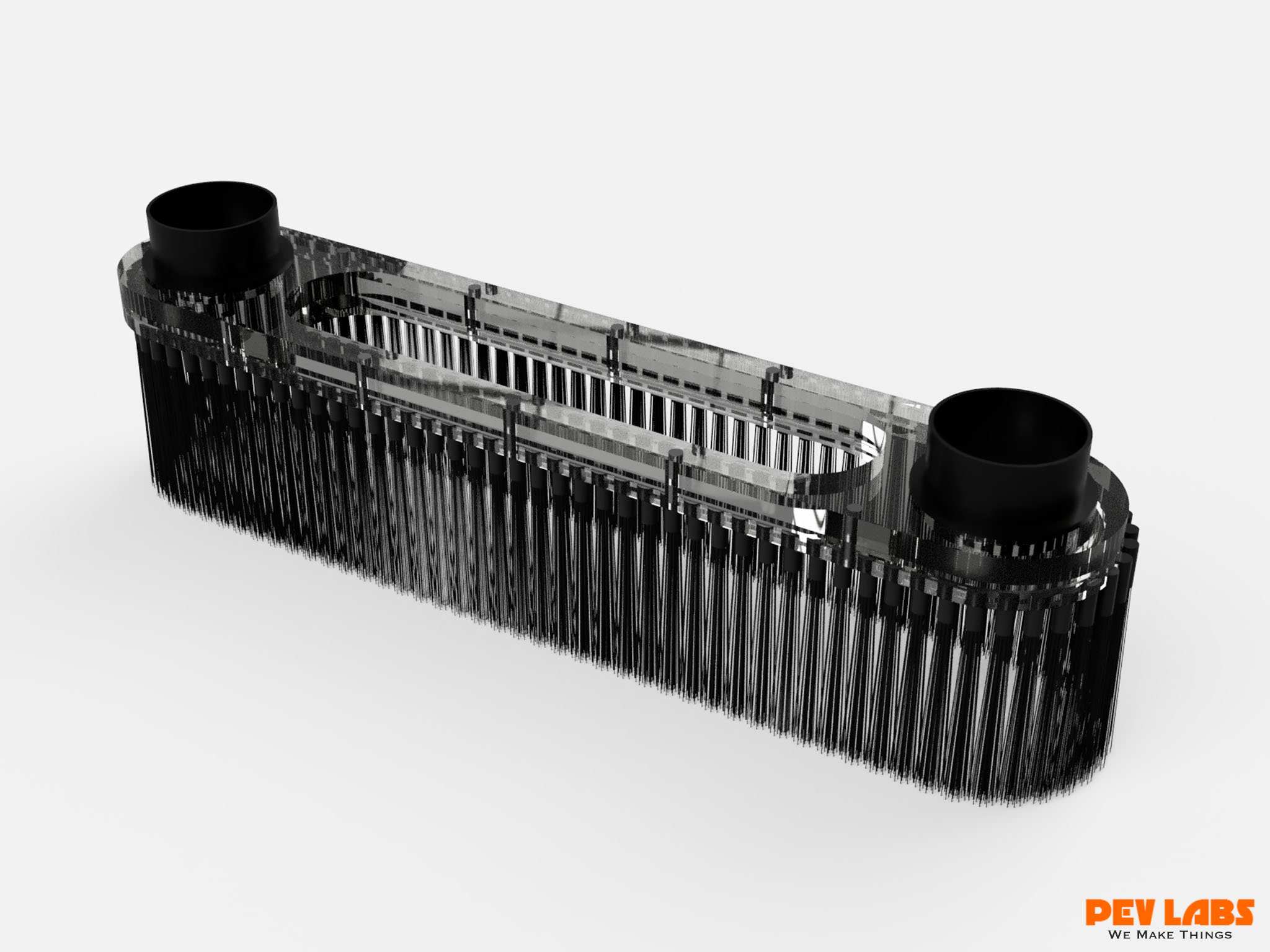

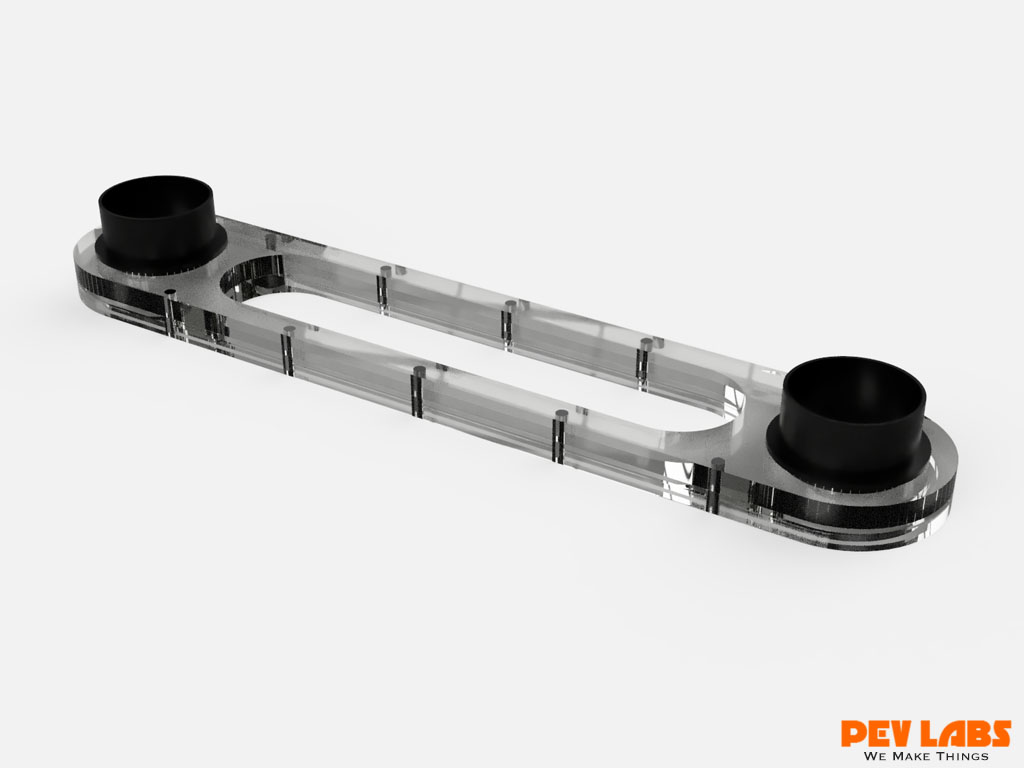

Multi Spindle Dust Shoe Base
